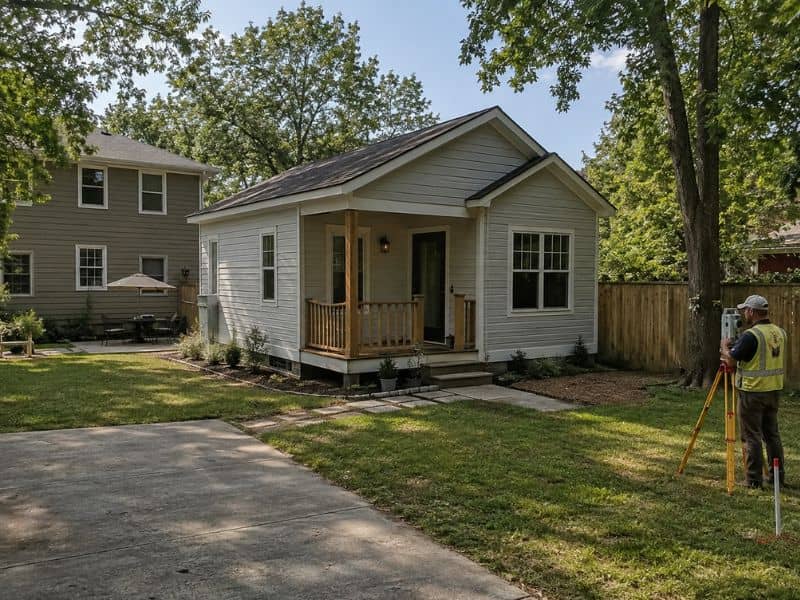

You have a backyard and a plan. Maybe a small second home for a parent, a rental, or a quiet office out back. Before you spend money on design, one question shapes everything. Will the accessory dwelling unit actually fit where you picture it? A property survey helps you answer that with real site information instead of a guess.
An ADU is a separate, smaller living space on the same lot as your main house. It usually has its own kitchen, bath, and entrance. Charlotte’s current guidance looks at each ADU based on the actual lot and the zoning rules that apply to it. That means no lot is a sure thing until someone checks the real conditions.
Does the Existing Lot Give the ADU Enough Room to Work?
A property survey shows how your house and other structures sit on the lot, so you can see if real room is left for an ADU. Start with the shape of your yard, not a definition. Your lot has a set boundary, a house, and often a driveway or garage.
Once those are drawn accurately, the open area becomes clear. You can then see if your planned ADU footprint fits inside what is left. The footprint is simply the outline the building would cover on the ground.
Lot shape matters more than total size. A wide, flat backyard behaves very differently from a narrow or oddly angled one. A survey shows the true edges and corners, plus the space between the house and the property lines.
Skip the online map for this part. Aerial images and county maps are fine for a first look, but they are not precise enough to place a building. They can be off by several feet, and a few feet can decide whether an ADU fits. Charlotte’s ADU guidance points to the actual lot and applicable zoning, not the idea that every residential lot can hold one.
Are the Existing Improvements Leaving the Right Space for an ADU?
The real question is not just where your lot lines are. It is what already sits in the spot where you want to build. Most backyards are busier than they look, and a survey can map the features already using your space.
That list often includes:
- The existing house footprint
- A garage or carport
- The driveway
- Walkways and patios
- A pool and its deck
- Sheds or other small structures
Charlotte’s own materials note that an as-built survey can show structures, driveways, walkways, gravel coverage, and impervious areas as they exist on a site. An as-built survey records what is physically there right now. That picture tells you how much usable room is truly open, and where the tight spots are before a designer starts drawing.
Does Anything Recorded or Existing on the Lot Affect the Proposed ADU Area?
Some parts of a lot come with limits attached. A survey paired with a records check can show if your ADU spot has anything on it that restricts building. Instead of asking what an easement is, ask a sharper question. Is anything already tied to the exact part of the yard where the ADU would go?
A few things can land right on top of a planned building area:
- Utility or access easements
- Stormwater areas or drainage paths
- Recorded restrictions that apply to that part of the lot
- Streams, floodplain, or protected trees
- Other mapped or documented features
v planning checklist tells homeowners to look at stormwater, utility, and access easements, tree-save areas, streams, and floodplain. These features can change what you are allowed to build, or block a spot entirely. Finding them early saves you from drawing plans around a space you cannot use.
Does the Proposed ADU Location Fit the Applicable Setback Requirements?
Having open backyard space does not mean you can build anywhere in it. Setbacks control how close to your lot lines a structure can go. A setback is the required distance between a building and a property line.
Picture an invisible margin running along each edge of your lot. You cannot place a structure inside that margin. So the buildable part of your yard is smaller than the fenced area you see.
This is where a property survey and your building plan meet. The survey gives an accurate position for your lot lines. Your design team can then measure where the ADU would sit and compare that to the rules for your property. Without reliable site information, a designer is guessing at the one number that can move a whole building.
Charlotte states that building setbacks are set by zoning requirements, and that zoning review checks setbacks along with other lot standards. Setback distances are not one fixed number for every property. They depend on the lot and the rules that apply to it. Confirm the current requirements for your specific property rather than trusting a figure from a neighbor or an old plan.
What Should Be Confirmed Before the ADU Design Moves Forward?
Before you pay for full design, you want a clear read on where the ADU can sit and what limits the space around it. By this point, a property survey has done its job when you can answer a short list of questions. These are the checkpoints to settle first.
- Where would the proposed ADU actually sit on the lot?
- How do the existing improvements shrink the usable area?
- Do any known constraints touch the spot you picked?
- Can the placement be checked against the zoning rules for your property?
- What else will your architect, designer, engineer, or permitting team need?
Charlotte currently sends ADUs through residential lot review, with zoning, stormwater, and urban forestry looked at depending on the project and site. A survey does not clear any of that. The city also notes that its planning checklist does not guarantee approval.
Here is the honest limit worth remembering. A property survey does not approve your ADU. It gives your project team reliable information about the existing property, so the proposed location can be checked before you commit to a design and start paying for it. That head start is the real reason to get a backyard ADU survey early.
